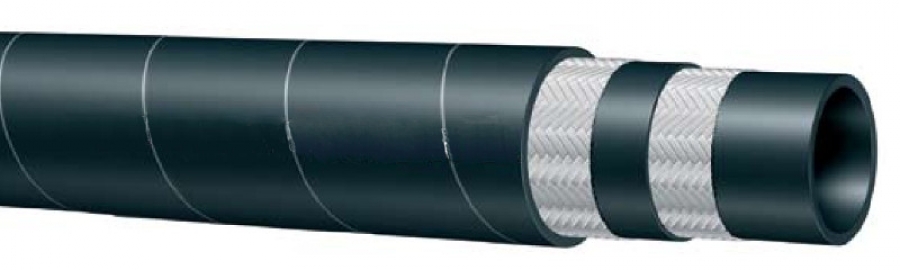

Hydraulic Hose SAE 100R4
Wire inserted hydraulic suction hose
Tube: Black, oil and heat resistant synthetic rubber.
Reinforcement: Spiral plied synthetic fabric with wire helix.
Cover: Black, oil, abrasion and weather resistant synthetic rubber (wrapped impression).
Temperature Range: -40 ℃ to +100℃
I.D. |
O.D. |
MAX WP |
BEND RADIUS |
WEIGHT |
|||||
in. |
mm. |
in. |
mm. |
psi |
Mpa |
in. |
mm. |
lb./ft. |
kg./m |
3/4 |
19.05 |
1.37 |
34.9 |
300 |
2 |
5 |
127 |
0.39 |
0.58 |
1 |
25.4 |
1.62 |
41.3 |
250 |
1.7 |
6 |
152 |
0.65 |
0.97 |
1 1/4 |
31.75 |
2 |
50.8 |
200 |
1.4 |
8 |
203 |
0.98 |
1.46 |
1 1/2 |
38.1 |
2.25 |
57.2 |
150 |
1 |
10 |
254 |
1.11 |
1.66 |
2 |
50.8 |
2.75 |
69.9 |
100 |
0.7 |
12 |
305 |
1.08 |
1.61 |
2 1/2 |
63.5 |
3.25 |
82.6 |
100 |
0.7 |
14 |
356 |
1.88 |
2.8 |
3 |
76.2 |
3.75 |
95.3 |
100 |
0.7 |
18 |
457 |
2.2 |
3.37 |
3 1/2 |
90 |
4.06 |
103 |
45 |
0.3 |
21 |
530 |
2.68 |
3.99 |
4 |
102 |
4.53 |
115 |
38 |
0.25 |
24 |
610 |
3.2 |
4.7 |
