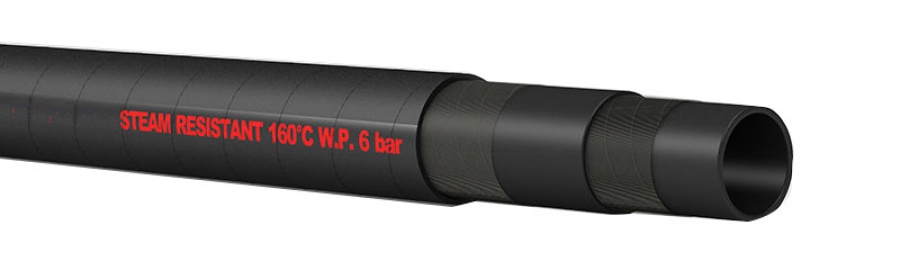

Steam Hose 160°C
softwall hot water discharge hose, for water that is even slightly acidic, suitable also for non corrosive fluids in numerous applications in chemical industries.
Tube: black, smooth, EPDM rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth, (wrapped finish) EPDM rubber, heat, weathering, and ozone resistant.
Temperature: from -40°C (-40°F) to +165°C (+329°F).
|
Inside Diameter |
Outside Diameter |
Working Pressure |
Burst Pressure |
Nominal Weight |
|||||
|
Mm inch |
Mm inch |
Bar psi |
Bar psi |
kg/m lbs/ft |
|||||
|
10 |
25/64 |
21 |
0,83 |
6 |
90 |
60 |
900 |
0,28 |
0,19 |
|
12 |
15/32 |
23 |
0,91 |
6 |
90 |
60 |
900 |
0,32 |
0,22 |
|
13 |
1/2 |
23 |
0,91 |
6 |
90 |
60 |
900 |
0,29 |
0,19 |
|
16 |
5/8 |
27 |
1,06 |
6 |
90 |
60 |
900 |
0,39 |
0,26 |
|
19 |
3/4 |
29 |
1,14 |
6 |
90 |
60 |
900 |
0,39 |
0,26 |
|
19 |
3/4 |
31 |
1,22 |
6 |
90 |
60 |
900 |
0,50 |
0,34 |
|
25 |
1 |
37 |
1,46 |
6 |
90 |
60 |
900 |
0,59 |
0,39 |
|
30 |
1-3/16 |
45 |
1,77 |
6 |
90 |
60 |
900 |
0,87 |
0,58 |
|
32 |
1-1/4 |
46,5 |
1,83 |
6 |
90 |
60 |
900 |
0,89 |
0,59 |
|
38 |
1-1/2 |
54 |
2,13 |
6 |
90 |
60 |
900 |
1,17 |
0,78 |
|
51 |
2 |
68 |
2,68 |
6 |
90 |
60 |
900 |
1,63 |
1,10 |
